DC50A

Main Parameters

Please be note that all the parameters below are just for reference. We provide easy & flexible customized service based on our skilled R&D team, workshop, and mold factory. Learn what custom services we offer.

Additional information

Rated Voltage

12V, 24V
Max Head

3.5M, 5M
Max Flow

3000L/H, 3600L/H
Inlet Diameter

27mm
Outlet Diameter

27mm
Dimensions

115.9×95.5×69.3mm
Noise

~40dB
Liquid Temperature

-40-100°C
DataSheet Download
Filter pumps by Parameters
Select Now
Full List of our existing Models
Check Now
DC30A Main Parameters
Rated Voltage 12V
Max Head 3M
Max Flow 240L/H
Inlet Diameter 8mm
Outlet Diameter 8mm
Dimensions 55.7×42.5×50.5mm
Noise ~40dB
Liquid Temperature -40~60 Celsius
DC40 Main Parameters
Rated Voltage 12V, 18V, 24V
Max Head 5M, 6M, 7M
Max Flow 520L/H, 600L/H, 660L/H
Inlet Diameter 14mm
Outlet Diameter 10mm
Dimensions 84.5×61.8×43.8mm
Noise ~40dB
Liquid Temperature -40~60 Celsius
DC40A Main Parameters
Rated Voltage 12V, 18V, 24V
Max Head 4.5M, 5M, 6M
Max Flow 620L/H, 720L/H, 840L/H
Inlet Diameter 14mm
Outlet Diameter 14mm
Dimensions 87.5×61.8×43.8mm
Noise ~40dB
Liquid Temperature -40~60 Celsius
DC40C Main Parameters
Rated Voltage 12V, 18V, 24V
Max Head 4M, 5M, 6M
Max Flow 720L/H, 780L/H, 900L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Dimensions 85.5×81.5×43.8mm
Noise ~40dB
Liquid Temperature -40~60 Celsius
DC40D Main Parameters
Rated Voltage 12V, 24V
Max Head 5M, 8M
Max Flow 450L/H, 550L/H
Inlet Diameter 10mm
Outlet Diameter 10mm
Dimensions 84.5×61.8×43.8mm
Noise ~40dB
Liquid Temperature -40~60 Celsius
DC40F Main Parameters
Rated Voltage 12V, 18V, 24V
Max Head 4M, 5M, 6M
Max Flow 780L/H, 840L/H, 960L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Dimensions 85.5×64.8×43.8mm
Noise ~40dB
Liquid Temperature -40~60 Celsius
DC40H Main Parameters
Rated Voltage 12V, 18V, 24V
Max Head 6.5M, 9M, 11M
Max Flow 360L/H, 420L/H, 450L/H
Inlet Diameter 11mm
Outlet Diameter 8mm
Dimensions 84.5×61.8×43.8mm
Noise ~40dB
Liquid Temperature -40~60 Celsius
DC40M Main Parameters
Rated Voltage 12V
Max Head 3.5M
Max Flow 530L/H
Inlet Diameter 13mm
Outlet Diameter 11mm
Dimensions 65.1×66.9×58.9mm
Noise 25dB
Liquid Temperature -40~60 Celsius
DC50A Main Parameters
Rated Voltage 12V, 24V
Max Head 3.5M, 5M
Max Flow 3000L/H, 3600L/H
Inlet Diameter 27mm
Outlet Diameter 27mm
Dimensions 115.9×95.5×69.3mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC50B Main Parameters
Rated Voltage 12V, 24V
Max Head 10M, 13M
Max Flow 1560L/H, 1800L/H
Inlet Diameter 20mm
Outlet Diameter 20mm
Dimensions 100.5×95.5×69.6mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC50C Main Parameters
Rated Voltage 12V, 24V
Max Head 6M, 8M
Max Flow 2100L/H, 2400L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Dimensions 106×97.5×71.5 mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC50E Main Parameters
Rated Voltage 12V, 24V
Max Head 11M, 15M
Max Flow 1320L/H, 1560L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Dimensions 93.9×99.5×69.6mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC50F Main Parameters
Rated Voltage 12V, 24V
Max Head 11M, 15M
Max Flow 1320L/H, 1560L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Dimensions 109x91x71.5mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC50G Main Parameters
Rated Voltage 12V, 24V
Max Head 6M, 8M
Max Flow 2100L/H, 2400L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Dimensions 99.4×92.5×69.6mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC50K Main Parameters
Rated Voltage 12V, 24V
Max Head 12M, 16M
Max Flow 1260L/H, 1380L/H
Inlet Diameter 14mm
Outlet Diameter 14mm
Dimensions 100.5×95.5×69.6mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC60B Main Parameters
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3100L/H, 3450L/H
Inlet Diameter 25mm
Outlet Diameter 25mm
Dimensions 100×150.3x123mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC60D Main Parameters
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3000L/H, 3300L/H
Inlet Diameter 20mm
Outlet Diameter 20mm
Dimensions 141.3x100x118mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC60E Main Parameters
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3000L/H, 3300L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Dimensions 141.3x100x118mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC60G Main Parameters
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3100L/H, 3450L/H
Inlet Diameter 3/4″ thread
Outlet Diameter 3/4″ thread
Dimensions 100×150.3x123mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC80D Main Parameters
Rated Voltage 12V, 24V
Max Head 6.5M, 8M
Max Flow 5300L/H, 6300L/H
Inlet Diameter 38mm
Outlet Diameter 38mm
Dimensions 213.8x144x148mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
DC80E Main Parameters
Rated Voltage 12V, 24V
Max Head 8M, 11M
Max Flow 3800L/H, 4600L/H
Inlet Diameter 1″ thread
Outlet Diameter 1″ thread
Dimensions 189.8x144x132.5mm
Noise ~40dB
Liquid Temperature -40~100 Celsius
New Blue Main Parameters
Rated Voltage 24V, 36V
Max Head 6M, 10M
Max Flow 12000L/H, 30000L/H
FOR SEA WATER AND FRESH WATER
20-LEVELS SPEED ADJUSTABLE
TOUCH SCREEN CONTROLLER
5-YEARS WARRANTY
Blue White Main Parameters
Rated Voltage 24V
Max Head 5M
Max Flow 12000L/H
FOR SEA WATER AND FRESH WATER
20-LEVELS SPEED ADJUSTABLE
STANDARD KEY CONTROLLER
3-YEARS WARRANTY
Red Black Main Parameters
Rated Voltage 24V
Max Head 5M
Max Flow 12000L/H
FOR SEA WATER AND FRESH WATER
20-LEVELS SPEED ADJUSTABLE
STANDARD KEY CONTROLLER
3-YEARS WARRANTY
ECO Slim Main Parameters
Rated Voltage 24V
Max Flow 30000L/H
TOUCH SCREEN CONTROLLER
3-YEARS WARRANTY
ECO Wave Main Parameters
Rated Voltage 24V
Max Flow 30000L/H
TOUCH SCREEN CONTROLLER
2-YEARS WARRANTY
Protein Skimmer Main Parameters
Rated Voltage 24V
Max Flow 12000L/H
TOUCH SCREEN CONTROLLER
3-YEARS WARRANTY

Sub-Model List

ModelRated VoltageOperation VoltageRated CurrentMax FlowMax Head
DC50A-1225TDC12VDC10-18V2A2000L/H2.5M
DC50A-1225S
DC50A-1225VR
DC50A-1225PWM
DC50A-1235SDC12VDC10-18V4.5A3000L/H3.5M
DC50A-1235VR
DC50A-1235PWM
DC50A-2435TDC24VDC10-30V2A3000L/H3.5M
DC50A-2435S
DC50A-2435VR
DC50A-2435PWM
DC50A-2450SDC24VDC10-30V3.6A3600L/H5M
DC50A-2450VR
DC50A-2450PWM

Click here to see the Model Code Instruction

Dimensions

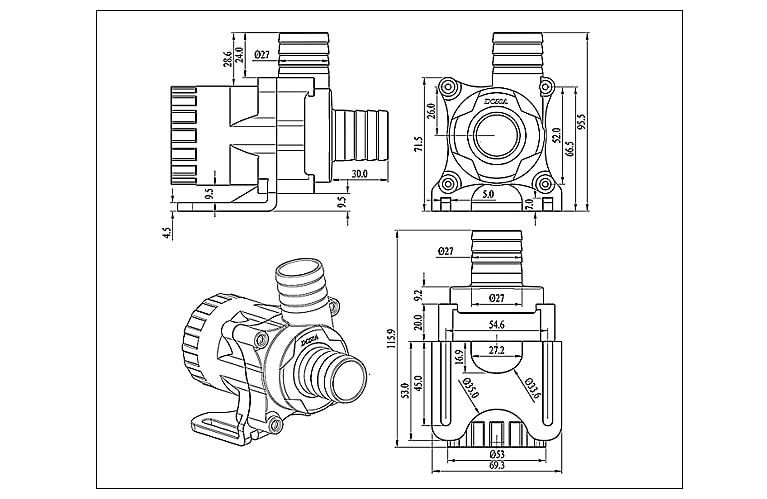

DC50A Dimensions

Performance Curve

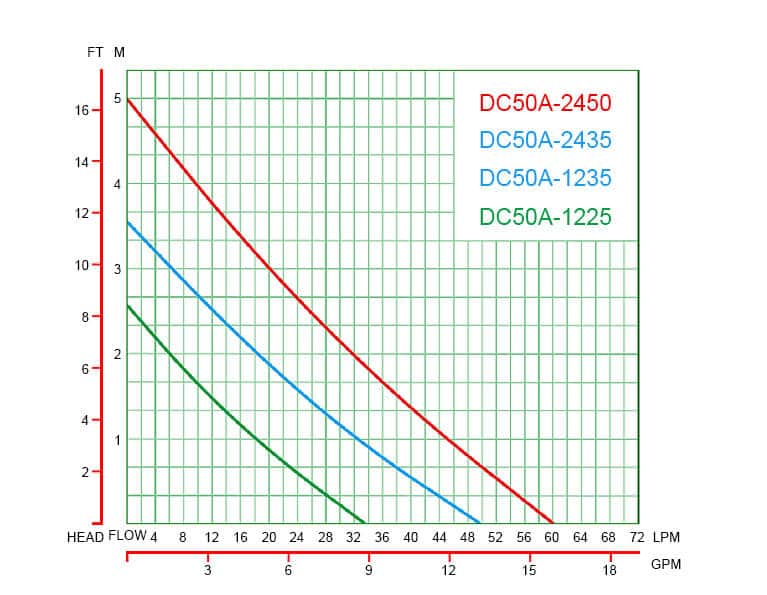

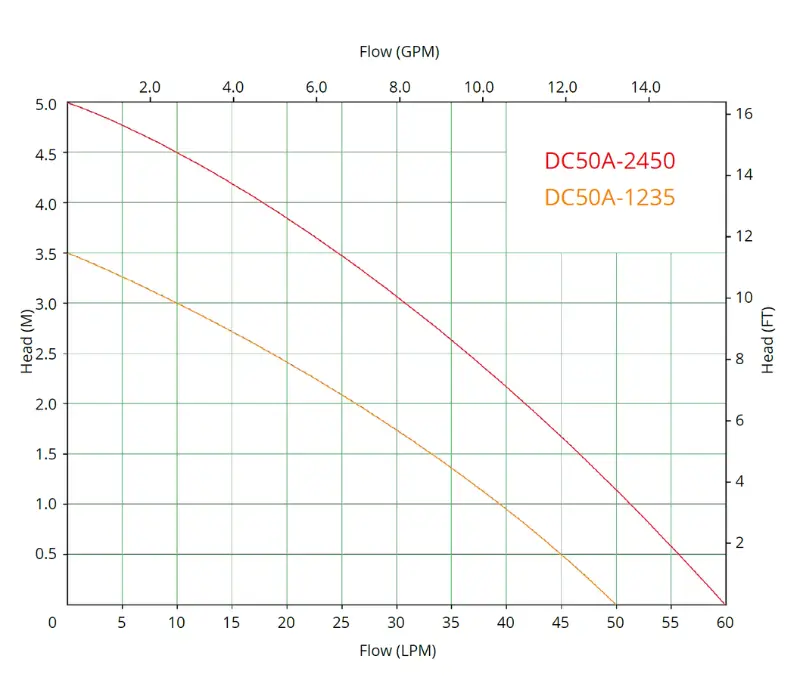

DC50A Performance Curves
