DC95D

dc95d ai server liquid cooling pump 1
dc95d ai server liquid cooling pump 2
dc95d ai server liquid cooling pump 3

Main Parameters

Please be note that all the parameters below are just for reference. We provide easy & flexible customized service based on our skilled R&D team, workshop, and mold factory. Learn what custom services we offer.

Additional information

Rated Voltage

48V
Max Head

20M
Max Flow

20000L/H
Inlet Diameter

38mm
Outlet Diameter

38mm
Dimensions

237×149×189mm
Noise

~35dB
Liquid Temperature

-40-100°C
DataSheet Download
Filter pumps by Parameters
Select Now
Full List of our existing Models
Check Now
Rated Voltage 12V
Max Head 4M
Max Flow 500L/H
Inlet Diameter 12mm
Outlet Diameter 8mm
Rated Voltage 12V
Max Head 4M
Max Flow 500L/H
Inlet Diameter 14mm
Outlet Diameter 10mm
Rated Voltage 12V
Max Head 3M
Max Flow 240L/H
Inlet Diameter 8mm
Outlet Diameter 8mm
Rated Voltage 12V, 18V, 24V
Max Head 5M, 6M, 7M
Max Flow 520L/H, 600L/H, 660L/H
Inlet Diameter 14mm
Outlet Diameter 10mm
Rated Voltage 12V, 18V, 24V
Max Head 4.5M, 5M, 6M
Max Flow 620L/H, 720L/H, 840L/H
Inlet Diameter 14mm
Outlet Diameter 14mm
Rated Voltage 12V, 18V, 24V
Max Head 4M, 5M, 6M
Max Flow 720L/H, 780L/H, 900L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 24V
Max Head 5M, 8M
Max Flow 450L/H, 550L/H
Inlet Diameter 10mm
Outlet Diameter 10mm
Rated Voltage 12V, 18V, 24V
Max Head 4M, 5M, 6M
Max Flow 780L/H, 840L/H, 960L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 18V, 24V
Max Head 6.5M, 9M, 11M
Max Flow 360L/H, 420L/H, 450L/H
Inlet Diameter 11mm
Outlet Diameter 8mm
Rated Voltage 12V
Max Head 3.5M
Max Flow 530L/H
Inlet Diameter 13mm
Outlet Diameter 11mm
Rated Voltage 12V, 24V
Max Head 3.5M, 5M
Max Flow 3000L/H, 3600L/H
Inlet Diameter 27mm
Outlet Diameter 27mm
Rated Voltage 12V, 24V
Max Head 10M, 13M
Max Flow 1560L/H, 1800L/H
Inlet Diameter 20mm
Outlet Diameter 20mm
Rated Voltage 12V, 24V
Max Head 6M, 8M
Max Flow 2100L/H, 2400L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 24V
Max Head 11M, 15M
Max Flow 1320L/H, 1560L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 24V
Max Head 11M, 15M
Max Flow 1320L/H, 1560L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 24V
Max Head 6M, 8M
Max Flow 2100L/H, 2400L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 24V
Max Head 15M, 20M
Max Flow 500L/H, 600L/H
Inlet Diameter 14mm
Outlet Diameter 14mm
Rated Voltage 12V, 24V
Max Head 12M, 16M
Max Flow 1260L/H, 1380L/H
Inlet Diameter 14mm
Outlet Diameter 14mm
Rated Voltage 12V, 24V
Max Head 9M, 13M
Max Flow 1200L/H, 1350L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 18V, 24V, 36V
Max Head 24M, 32M, 32M, 32M
Max Flow 1800L/H, 2000L/H, 2000L/H, 2000L/H
Inlet Diameter 20mm
Outlet Diameter 20mm
Rated Voltage 12V, 18V, 24V, 36V
Max Head 24M, 32M, 32M, 32M
Max Flow 1800L/H, 2000L/H, 2000L/H, 2000L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3100L/H, 3450L/H
Inlet Diameter 25mm
Outlet Diameter 25mm
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3000L/H, 3300L/H
Inlet Diameter 20mm
Outlet Diameter 20mm
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3000L/H, 3300L/H
Inlet Diameter 1/2″ thread
Outlet Diameter 1/2″ thread
Rated Voltage 12V, 24V
Max Head 10M, 12M
Max Flow 3100L/H, 3450L/H
Inlet Diameter 3/4″ thread
Outlet Diameter 3/4″ thread
Rated Voltage 12V, 24V
Max Head 6.5M, 8M
Max Flow 5300L/H, 6300L/H
Inlet Diameter 38mm
Outlet Diameter 38mm
Rated Voltage 12V, 24V
Max Head 8M, 11M
Max Flow 3800L/H, 4600L/H
Inlet Diameter 1″ thread
Outlet Diameter 1″ thread
Rated Voltage 12V, 18, 24V, 36V, 48V
Max Head 5M, 8M, 10M, 10M, 10M
Max Flow 10000L/H, 12000L/H, 13500L/H, 13500L/H, 13500L/H
Inlet Diameter 38mm
Outlet Diameter 38mm
Rated Voltage 12V, 18, 24V, 36V, 48V
Max Head 5M, 8M, 10M, 10M, 10M
Max Flow 10000L/H, 12000L/H, 13500L/H, 13500L/H, 13500L/H
Inlet Diameter 1-1/4″ thread
Outlet Diameter 1-1/4″ thread
Rated Voltage 48V
Max Head 45M
Max Flow 6000L/H
Inlet Diameter 25mm
Outlet Diameter 25mm
Rated Voltage 48V
Max Head 20M
Max Flow 20000L/H
Inlet Diameter 38mm
Outlet Diameter 38mm
Rated Voltage 48V
Max Head 45M
Max Flow 6000L/H
Inlet Diameter 3/4″ thread
Outlet Diameter 3/4″ thread
Rated Voltage 48V
Max Head 20M
Max Flow 20000L/H
Inlet Diameter 1-1/4″ thread
Outlet Diameter 1-1/4″ thread
New Blue Main Parameters
Rated Voltage 24V, 36V
Max Head 6M, 10M
Max Flow 12000L/H, 30000L/H
FOR SEA WATER AND FRESH WATER
20-LEVELS SPEED ADJUSTABLE
TOUCH SCREEN CONTROLLER
5-YEARS WARRANTY
Blue White Main Parameters
Rated Voltage 24V
Max Head 5M
Max Flow 12000L/H
FOR SEA WATER AND FRESH WATER
20-LEVELS SPEED ADJUSTABLE
STANDARD KEY CONTROLLER
3-YEARS WARRANTY
Red Black Main Parameters
Rated Voltage 24V
Max Head 5M
Max Flow 12000L/H
FOR SEA WATER AND FRESH WATER
20-LEVELS SPEED ADJUSTABLE
STANDARD KEY CONTROLLER
3-YEARS WARRANTY
ECO Slim Main Parameters
Rated Voltage 24V
Max Flow 30000L/H
TOUCH SCREEN CONTROLLER
3-YEARS WARRANTY
ECO Wave Main Parameters
Rated Voltage 24V
Max Flow 30000L/H
TOUCH SCREEN CONTROLLER
2-YEARS WARRANTY
Protein Skimmer Main Parameters
Rated Voltage 24V
Max Flow 12000L/H
TOUCH SCREEN CONTROLLER
3-YEARS WARRANTY

Sub-Model List

ModelRated VoltageOperation VoltageRated CurrentMax FlowMax Head
DC95D-48200PWMDC48VDC40-56VClosed Outlet Current: 12.9A ±5%
Open Outlet Current: 7.9A ±5%		20000L/H ±5%20M ±5%
DC95D-48200VR
DC95D-48200S

Click here to see the Model Code Instruction

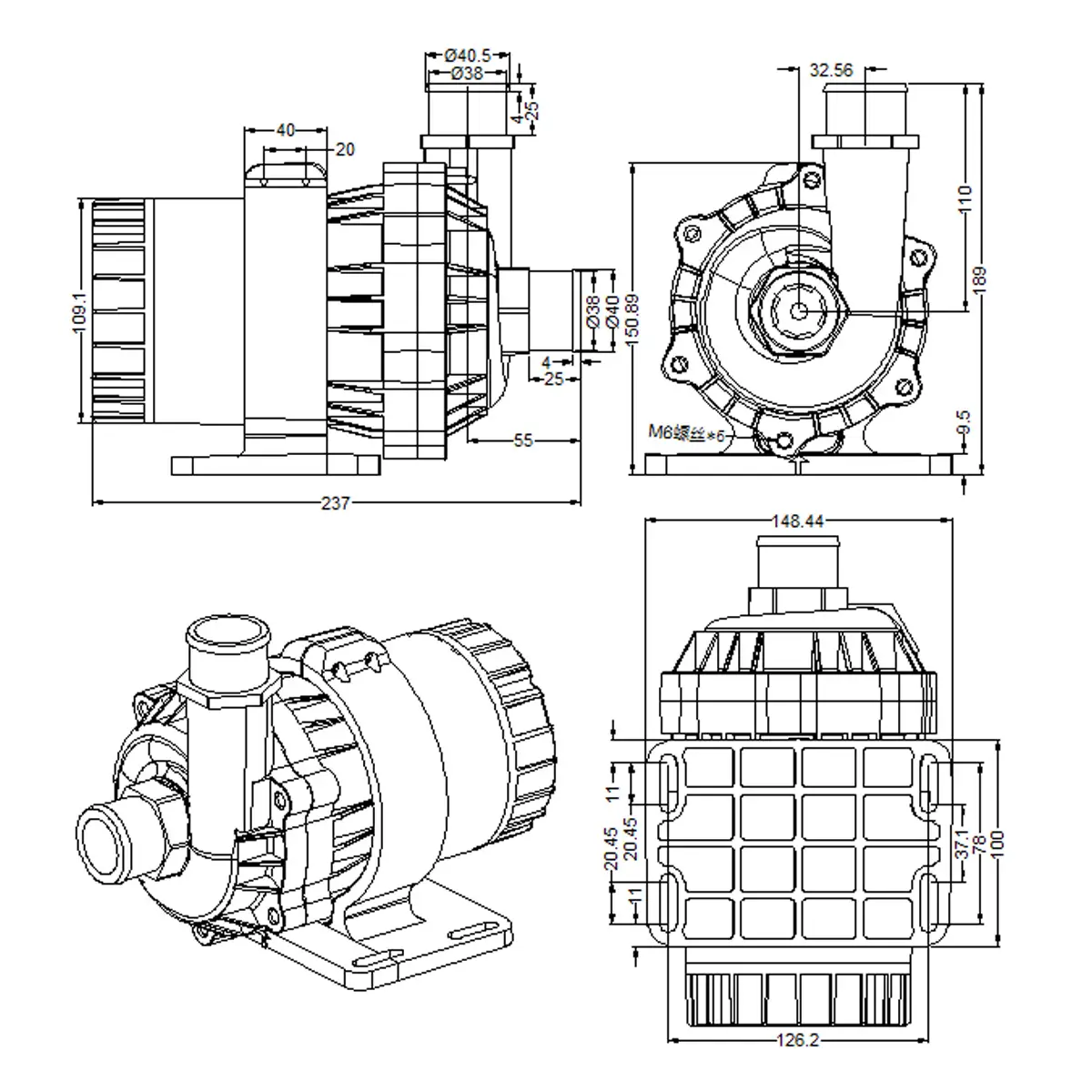

Dimensions

dc95d dimensions

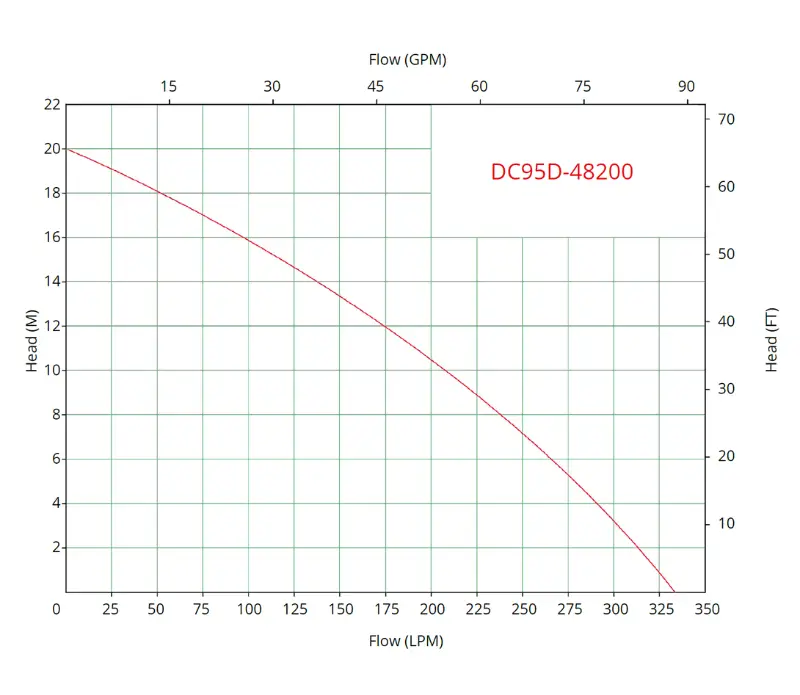

Performance Curve

dc95d curve graph
